Electrostatic discharge (ESD) is a silent reliability risk in electronics manufacturing and service. It isn’t just the visible spark you feel—low‑energy, unseen discharges can damage components and create quality issues that may only surface later in the product’s life cycle.

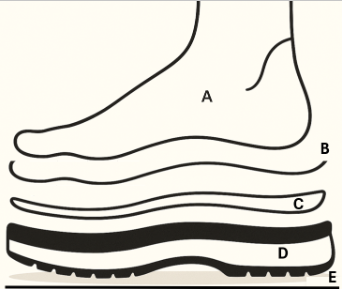

To manage this risk, electronics handling must occur inside an ESD Protected Area (EPA) designed for controlled grounding and charge dissipation. One integral element is ESD/antistatic footwear, which prevents charge accumulation on the operator and provides a safe discharge path when interacting with equipment, fixtures, and products.

Think of ESD protection like hygiene in the food industry: without consistent practices, delivered products won’t meet standards.

ESD & Antistatic Footwear—Standards and Site Policies

Performance requirements for footwear in an EPA are typically derived from recognized standards (e.g., IEC 61340‑5‑1) and then adopted into the company quality system. Customers or authorities may also demand conformance. Once embedded in your quality system, adherence is mandatory, and audit findings result from deviations.

Typical resistance ranges used by sites (from operator to ESD floor) include:

• Antistatic footwear: commonly managed within 100 kΩ to 1 GΩ to balance electric shock safety (avoid too‑low resistance) and charge buildup risk (avoid too‑high resistance).
• General EPA work: many sites use ≤100 MΩ as the upper limit for footwear/flooring systems.
• Direct electronics handling: many sites adopt ≤35 MΩ as a conservative upper limit to keep walking voltages low. IEC 61340‑5‑1 includes requirements for personnel grounding systems—bracelet and shoes—under specific test methods and configurations.

Note: Exact limits and test methods vary by standard edition and site policy. Your quality plan defines the controlling pass criteria and test procedure. Ensure any footwear solution aligns with your plan and auditable records.

Lower limit considerations: Sites commonly set ≥100 kΩ to reduce shock hazard; some adopt higher lower bounds (e.g., ≥750 kΩ) to slow discharge rates. Align these thresholds with your safety policy and standards interpretation.

Certification vs. Real‑World Entry Tests

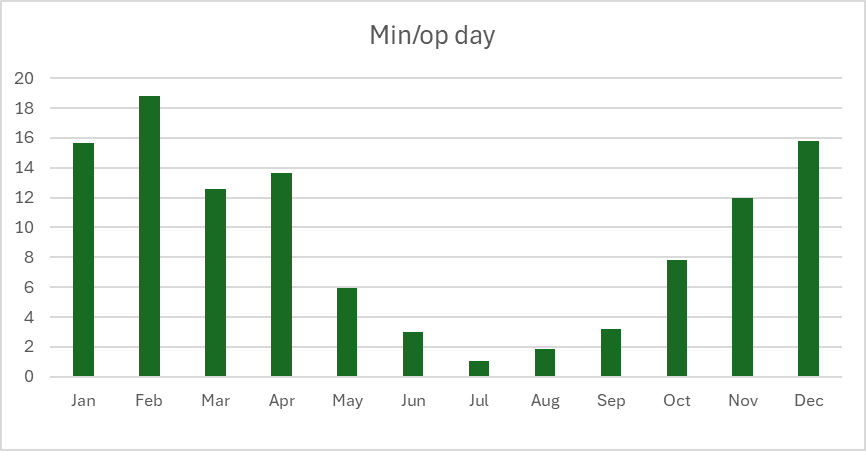

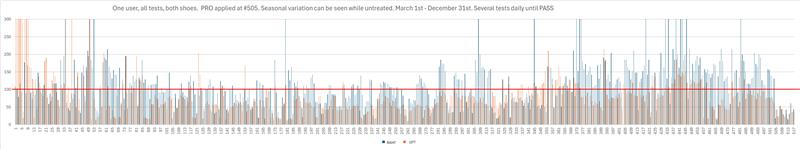

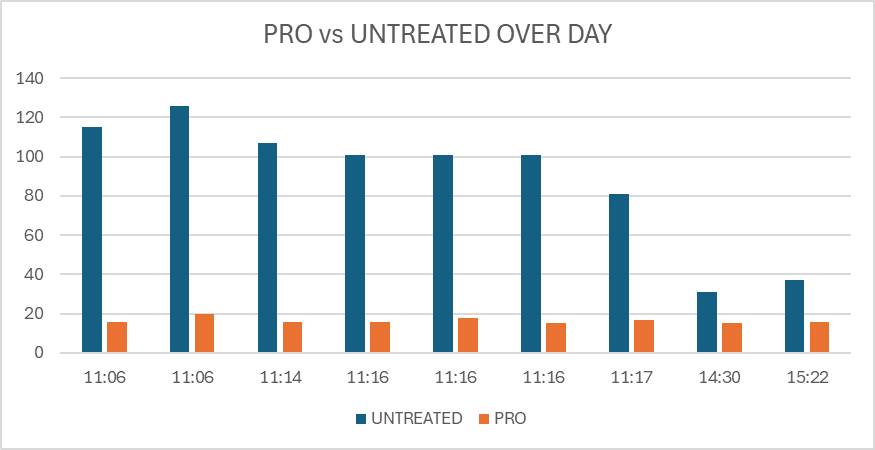

Shoes are type‑tested under typical “in‑use” conditions—often moisture present due to normal perspiration—so they pass in the lab. In dry early‑shift conditions, resistance is higher, and operators may wait until footwear becomes moist enough to pass. This creates a hidden efficiency loss: collected site data indicates up to ~19 minutes per operator per day (during low RH season) can be lost under certain conditions when shoes are untreated.

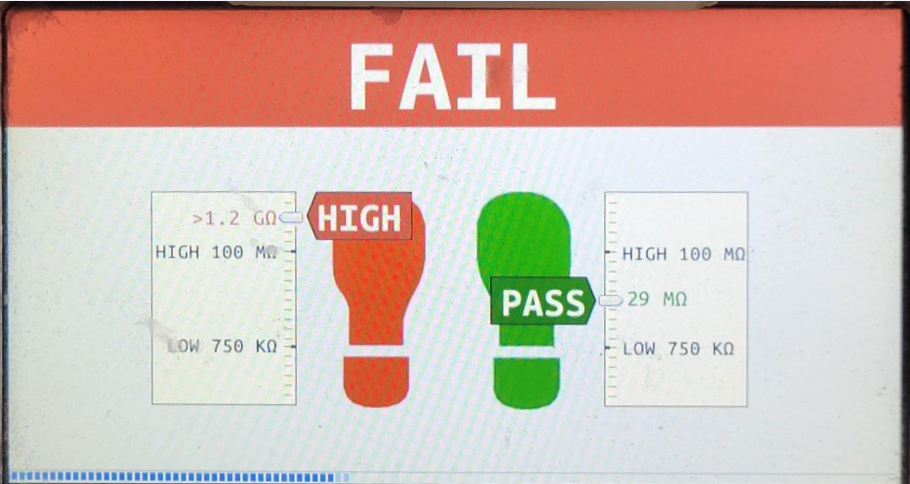

Because of this, EPA entry tests and records—not just product certification—are the operational evidence of compliance. Footwear must pass at the time of use.

How Sites Typically Handle Early‑Shift Failures (and why issues persist)

Get new shoes and hope for the best.

• Even new shoes frequently fail.
• Time wasted to get new shoes.
• Cost of new shoes.

Keep testing until shoes pass

• Clogs testing stations; creates operator frustration.
• Hidden waste (management may arrive later; delays go unseen).
• Becomes a forever problem that is just accepted.

Go for coffee and return later to test

• Waiting time reduces efficiency; same hidden waste dynamic.
• Acceptable only if shifts begin with a meeting and timing masks the delay.

Start work and come back later to test (worst option)

• Work begins without ESD protection yet checklists show “pass.”
• Quality problems become hard to root cause; noncompliant with standards/quality system.

Prevent shoes from drying between shifts

• Causes microbial issues (smell, mold, infections) and shoe deterioration.

Wet shoes before testing

• Shoes don’t dry between shifts; same microbial and wear problems.
• Time wasted; not a controlled or hygienic process.

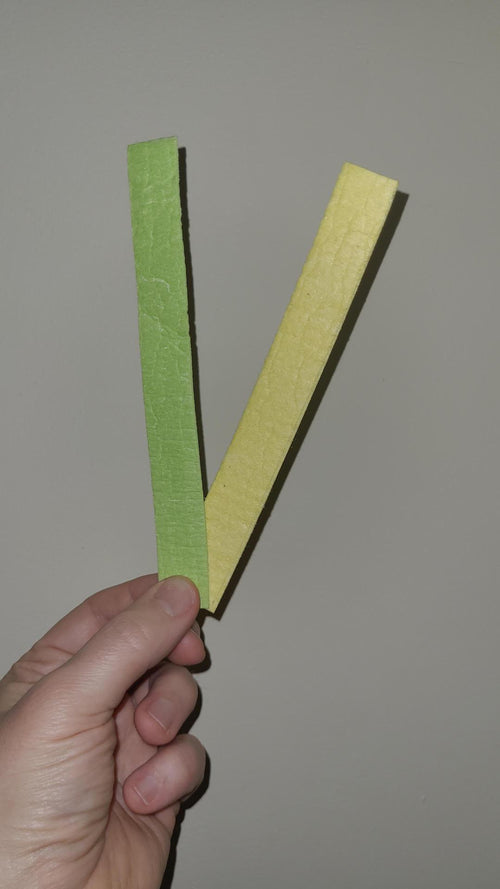

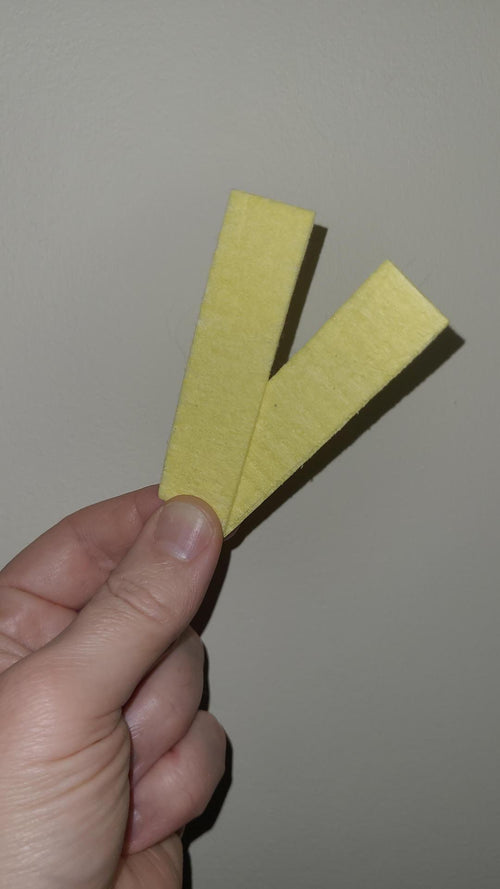

Disposable ESD strips (between foot and shoe, under heel)

• Time‑consuming (estimate 2 min to install and re-test)
• Unergonomic to install.
• High daily cost (~€0.60/pair/day typical).
• Strips can shift/fall off, causing noncompliance and litter.

ESD straps for shoes

• Installation time; expensive in daily use.
• Uncomfortable
• Can slip, creating noncompliance.

ESD Explained for Non‑Experts (" ESD for Dummies ")

Electrostatic discharge (ESD) can feel abstract. Still, anyone working around ESD‑sensitive electronics needs a basic grasp of how charges behave—and how we prevent damaging discharges. The explanation below uses simple analogies to make the idea tangible. It’s intentionally simplified: in reality, distance to other objects, surfaces, humidity, temperature, and many other factors also matter.

The core idea

Electrically isolated objects can accumulate charge through contact, separation, or induction. For a given charge Q, an object with smaller capacitance to its surroundings (often smaller or farther from ground) sits at a higher voltage V (V=Q/C).

When two objects at different potentials touch or are connected, charge flows until they reach a common potential and the electric field collapses.The likelihood of ESD damage increases with both voltage and available charge/energy(U=1/2​CV2), especially for integrated circuits; purely mechanical parts are typically unaffected.

Every isolated body has capacitance to its environment, so any net charge is balanced by an equal and opposite charge somewhere in the surroundings (often spread over ground/nearby conductors or bound in dielectrics—effectively “at infinity” for a lone charged object). Electrostatic energy resides in the electric field around the object, not in the material itself.

During a discharge, both sides of the charge separation redistribute (the “opposite” side changes too, though its potential shift may be negligible if it’s large, like ground).

Because charge and fields couple across the whole environment, effective ESD control must be area‑wide—floors, footwear/heel straps, garments, benches, packaging, tools, and proper grounding—not just isolated details.

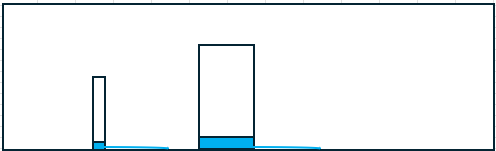

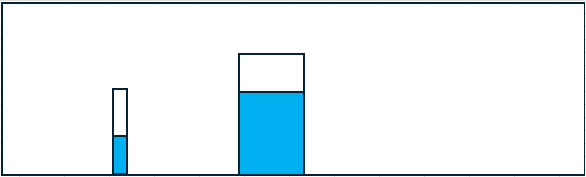

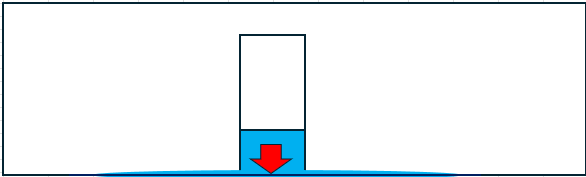

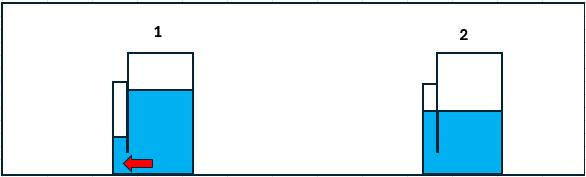

The water‑bucket analogy (layman’s model for ESD)

We explain static electricity by replacing abstract charges with water:

• Water amount → Electric charge (Q)
• Water level → Voltage (V)
• Bucket diameter → Capacitance to surroundings (C)
• Flow through a pipe → Current (I)
• Pipe restriction → Resistance (R)
• Floor → Ground
• Breakable wall between pipes → Dielectric breakdown

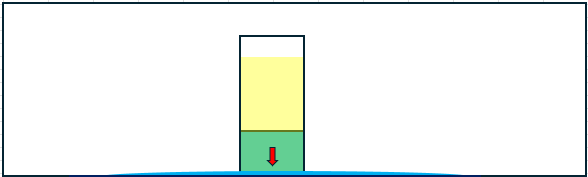

• Sponge inside bucket → Controlled, slow discharge (high resistance path)

Note: In the analogy water is only positive; in reality, charge can be positive or negative. The idea of “equalizing” still holds: charges redistribute until potentials match.1)

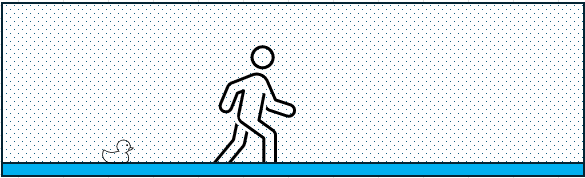

Why objects charge up (getting “wet”)

In our room there’s fine drizzle and splashes from the floor. As people and objects move or touch/separate, drops accumulate on them. Big or small, if they’re unprotected, they can get wet.
